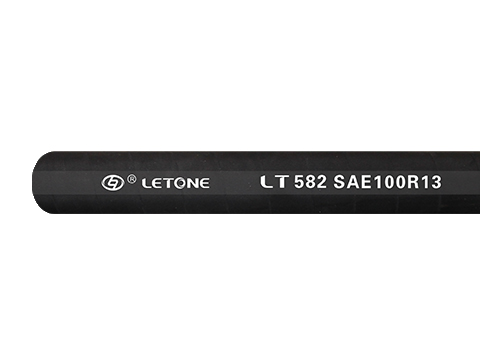

SAE 100R13 Wire Spiral High Pressure Hydraulic Rubber Hose SAE 100R13 Wire Spiral High Pressure Hydraulic Rubber Hose
  • LT582
  • Application： suitable for using oil base hydraulic oil, is suitable for the harsh conditions of high temperature and medium pressure hose
  • Tube：wear-resistant rubber
  • Reinforcement：adopts 4-layer high-strength steel wire wrapped layer as the framework layer
  • Cover：wear-resistant rubberouter rubber layers
  • Standard：Hose execution SAE100R13 standard, GB/T10544-2013 standard

  • I.D.

    (mm)

    I.D.

    (in.)

    I.D. (mm)

    O.D.(mm)

    Max.W.P.

    Min. B.P.

    Min. B.R.

    Min

    Max

    Max

    (MPa)

    (MPa)

    (mm)
    19  3/4 18.6 19.8 33.2 35 140 240
    25 1    25.0 26.4 39.8 35 140 300
    32 1 1/4 31.4 33.0 51.3 35 140 420
    38 1 1/2 37.7 39.3 58.8 35 140 500
    51 2    50.4 52.0 72.7 35 140 640
