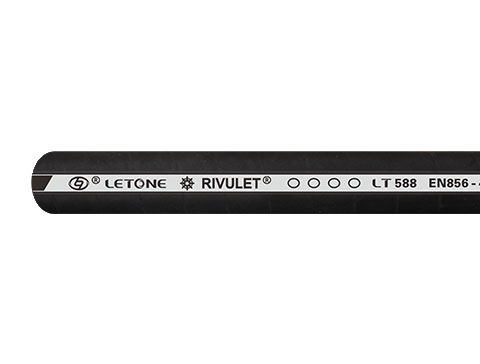

EN856-4SH 4 Wire Spiral Hydraulic Rubber Hose EN856-4SH 4 Wire Spiral Hydraulic Rubber Hose
  • LT588
  • Applications：suitable for the use of petroleum base hydraulic oil
  • Tube：The hose consists of a neoprene inner rubber layer
  • Reinforcement：4-layer high strength steel wire winding layer
  • Cover：oil and weather resistant synthetic rubber outer rubber layer
  • Temperature Range： -40℃~+100℃(-40°F~+212°F)
  • Standard：Hose execution ne856-4sh standard, GB/ t10544-2013 standard

  • I.D. (mm)

    I.D. (in.)

    I.D. (mm)

    O.D.(mm)

    Max.W.P.

    Min.B.P.

    Min. B.R.

    Min

    Max

    Max

    (MPa)

    (MPa)

    (mm)

    10

    5/8

    15.5

    16.7

    29.0

    45

    180

    250

    12

    3/4

    18.6

    19.8

    33.0

    42

    168

    280

    16

    1

    25.0

    26.4

    39.9

    38

    152

    340

    20

    1 1/4

    31.4

    33.0

    47.1

    32.5

    130

    460

    24

    1 1/2

    37.7

    39.3

    55.1

    29

    116

    560

    32

    2

    50.4

    52.0

    69.7

    25

    100

    700
