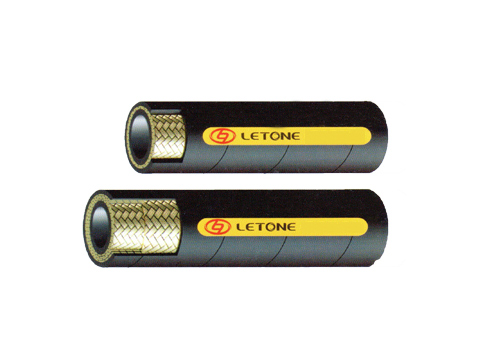

SAE 100R9 Wire Spiral Hydraulic Rubber Hose SAE 100R9  Wire Spiral Hydraulic Rubber Hose
  • LT586
  • Application: Suitable for using oil base hydraulic oil, is suitable for the harsh conditions of high temperature and medium pressure hose
  • Yube: An inner tube of oil resistant synthetic rubber
  • Reinforcement:4 plies of steel wire Wrapped in alternating directions
  • Cover: Weather resistant synthetic rubber cover
  • TEMPERATURE RANGE:-40℃~+121℃(-40°F~+250°F)
  • SIZE
    (Dash)

    SIZE
    (in.)

    I.D.
    (mm)

    O.D.
    (mm)

    Max.W.P.

    Min.B.P.

    Min.B.R.

    Min

    Max

    Max

    (MPa)

    (MPa)

    (mm)

    10  3/8 9.3 10.1 22.2 31.5 126 125
    13  1/2 12.3 13.5 25.4 28 112 180
    19  3/4 18.6 19.8 32.2 21 84 240
    25 1    25.0 26.4 40.9 21 84 300
    32 1 1/4 31.4 33.0 52.4 17.5 70 420
    38 1 1/2 37.7 39.3 58.7 14 56 500
    51 2    50.4 52.0 73.0 14 56 660
