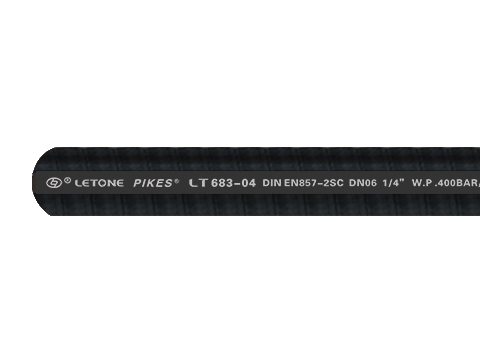

EN857 SC Wire Braid Hydraulic Rubber Hose EN857 SC Wire Braid Hydraulic Rubber Hose
  • LT683
  • Applications：Suitable for conveying petroleum oil and water-based and biodegradable hydraulic oil, to meet industrial demands for General
  • Tube：black oil-resistant synthetic rubber
  • Reinforcement：one or two layers of super flexible high-strength steel wire
  • Cover：one or two layers of super-soft high-strength steel wire
  • Temperature：-40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F)

  • SIZE
    (Dash)

    SIZE
    (in.)

    I.D.
    (mm)

    O.D.
    (mm)

    Max.W.P.

    Min.B.P.

    Min.B.R.

    Min

    Max

    Max

    (MPa)

    (MPa)

    (mm)

    6

    1/4-1

    6.1

    6.9

    13.5

    22.5

    90

    75

    8

    5/16-1

    7.7

    8.5

    14.5

    21.5

    86

    85

    10

    3/8-1

    9.3

    10.1

    16.9

    18

    72

    90

    13

    1/2-1

    12.3

    13.5

    20.4

    16

    64

    130

    16

    5/8-1

    15.5

    16.7

    23.0

    13

    52

    150

    19

    3/4-1

    18.6

    19.8

    26.7

    10.5

    42

    180

    25

    1-1

    25.0

    26.4

    34.9

    8.8

    35.5

    230

    6

    1/4-2

    6.1

    6.9

    14.2

    40

    160

    75

    8

    5/16-2

    7.7

    8.5

    16.0

    35

    140

    85

    10

    3/8-2

    9.3

    10.1

    18.3

    33

    132

    90

    13

    1/2-2

    12.3

    13.5

    21.5

    27.5

    110

    130

    16

    5/8-2

    15.5

    16.7

    24.7

    25

    100

    170

    19

    3/4-2

    18.6

    19.8

    28.6

    21.5

    86

    200

    25

    1-2

    25.0

    26.4

    36.6

    16.5

    66

    250
