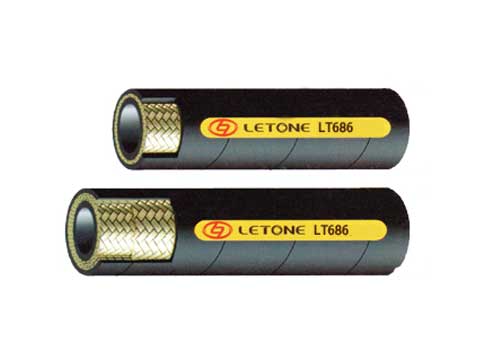

Large Diameter Steel Wire Braided Rubber Hose for Mine Large Diameter Steel Wire Braided Rubber Hose for Mine
  • LT686
  • Applications:suitable for conveying mineral oil, water-based hydraulic oil or water and other media in hydraulic systems such as coal mine hydraulic supports and integrated coal mining units
  • Tube:black oil-resistant synthetic rubber
  • Reinforcement:one or two layers of super flexible high-strength steel wire
  • Cover:black oil-resistant, weather-resistant, wear-resistant synthetic rubber
  • Temperature range: -40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F)
  • SIZE
    (Dash)

    SIZE
    (in.)

    I.D.
    (mm)

    O.D.
    (mm)

    Max.W.P.

    Min.B.P.

    Min.B.R.

    Min

    Max

    Max

    (MPa)

    (MPa)

    (mm)

    64

    2-1/2-1

    63.5

    65.3

    80.0

    3.5

    10.5

    800

    76

    3-1

    75.5

    77.5

    92.0

    3

    9

    920

    86

    3-3/8-1

    84.5

    86.7

    101.0

    2.5

    7.5

    1000

    89

    3-1/2-1

    88.4

    90.0

    106.0

    2.5

    7.5

    1100

    101

    4-1

    101.0

    104.5

    121.0

    2

    6

    1300

    64

    2-1/2-2

    63.5

    65.3

    80.0

    7

    21

    800

    76

    3-2

    75.5

    77.5

    94.0

    6

    18

    920

    86

    3-3/8-2

    84.5

    86.7

    103.0

    5

    15

    1000

    89

    3-1/2-2

    88.4

    90.0

    108.0

    5

    15

    1100

    102

    4-2

    101

    104.5

    123

    4

    12

    1300
