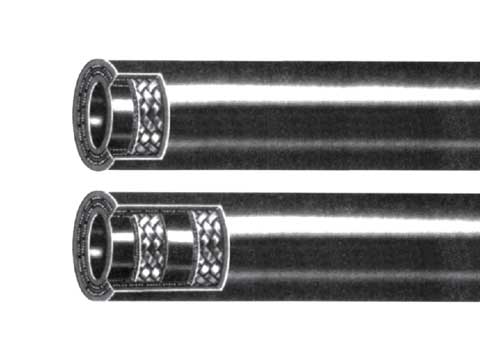

SAE 100R16 Compact High Pressure 1 and 2 Steel Wire Braided Reinforced Rubber Hoses SAE 100R16 Compact High Pressure 1 and 2 Steel Wire Braided Reinforced Rubber Hoses
  • LT687
  • Application：suitable for conveying water-based and petroleum-based hydraulic oil and biodegradable hydraulic oil, to meet the general needs of industrial pipes
  • Tube：black oil-resistant synthetic rubber
  • Reinforcement：one or two layers of super flexible high-strength steel wire
  • Cover：black oil-resistant, weather-resistant, wear-resistant synthetic rubber
  • Temperature range：-40 ° C ~ + 121 ° C (-40 ° F ~ + 250 ° F)

  • SIZE
    (Dash)

    SIZE
    (in.)

    I.D.
    (mm)

    O.D.
    (mm)

    Max.W.P.

    Min.B.P.

    Min

    Max

    Max

    (MPa)

    (MPa)

    6

    1/4

    6.2

    7.0

    14.5

    35

    140

    8

    5/16

    7.7

    8.5

    15.7

    29.7

    119

    10

    3/8

    9.3

    10.1

    18.8

    28

    112

    13

    1/2

    12.3

    13.5

    22.0

    24.5

    98

    16

    5/8

    15.5

    16.7

    25.4

    21

    84

    19

    3/4

    18.6

    19.8

    29.0

    21

    84

    25

    1"

    25.0

    26.4

    36.6

    14

    56

    32

    1"1/4

    31.4

    33.0

    44.3

    11.3

    45.5
