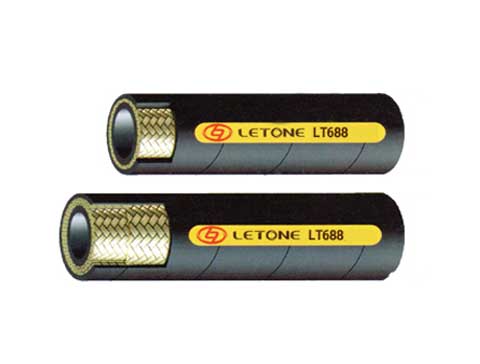

SAE 100R17 Compact 1 and 2 steel Wire Reinforced Rubber Hoses SAE 100R17 Compact 1 and 2 steel Wire Reinforced Rubber Hoses
  • LT688
  • Applications：Suitable for conveying petroleum oil and water-based and biodegradable hydraulic oil, to meet industrial demands for General
  • Tube：black oil-resistant synthetic rubber
  • Reinforcement：one or two layers of super flexible high-strength steel wire
  • Cover：black oil-resistant, weather-resistant, wear-resistant synthetic rubber
  • Temperature range：-40 ° C ~ + 100 ° C (-40 ° F ~ + 212 ° F)

  • SIZE
    (Dash)

    SIZE
    (in.)

    I.D.
    (mm)

    O.D.
    (mm)

    Max.W.P.

    Min.B.P.

    Min.B.R.

    Min

    Max

    Max

    (MPa)

    (MPa)

    (mm)

    6

    1/4

    6.2

    7.0

    13.2

    21

    84

    50

    8

    5/16

    7.7

    8.5

    15.0

    21

    84

    55

    10

    3/8

    9.3

    10.1

    17.0

    21

    84

    65

    13

    1/2

    12.3

    13.5

    21.1

    21

    84

    90

    16

    5/8

    15.5

    16.7

    25.9

    21

    84

    100

    19

    3/4

    18.6

    19.8

    30.3

    21

    84

    120

    25

    1"

    25.5

    26.4

    38.6

    21

    84

    150
