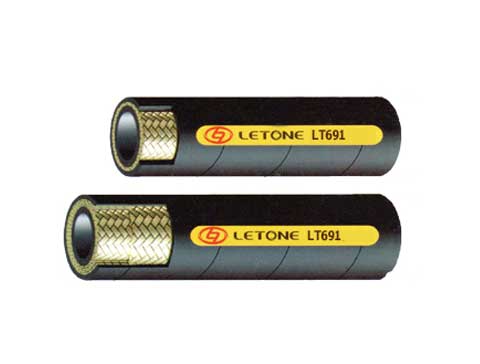

Ultra-Low Temperature Steel Wire Braided Hydraulic Rubber Hose Ultra-Low Temperature Steel Wire Braided Hydraulic Rubber Hose
  • LT691
  • Applications：suitable for petroleum-based hydraulic oil used at ultra-low temperature
  • Tube：Ultra-low-temperature resistance especially good, has good oil resistance special rubber compound
  • Reinforcement：steel wire braid
  • Cover：special compound rubber with good weather resistance
  • Temperature range： -55 ℃ ~ + 100 ℃

  • SIZE
    (Dash)

    SIZE
    (in.)

    I.D.
    (mm)

    O.D.
    (mm)

    Max.W.P.

    Min.B.P.

    Min.B.R.

    Min

    Max

    Max

    (MPa)

    (MPa)

    (mm)

    6

    1/4-1S

    5.8

    6.5

    13.5

    25

    100

    80

    8

    5/16-1S

    7.7

    8.5

    15.5

    21

    84

    92

    10

    3/8-1S

    9.8

    10.5

    17.5

    21

    84

    104

    13

    1/2-1S

    12.8

    13.5

    21.0

    14

    56

    144

    16

    5/8-1S

    15.8

    16.6

    24.5

    14

    56

    160

    19

    3/4-1S

    18.8

    19.8

    28.5

    14

    56

    192

    25

    1"-1S

    24.8

    25.8

    35.5

    9

    36

    240

    6

    1/4-2S

    5.8

    6.5

    15.2

    42

    168

    80

    8

    5/16-2S

    7.8

    8.5

    16.8

    42

    168

    92

    10

    3/8-2S

    9.8

    10.5

    19.2

    35

    140

    104

    13

    1/2-2S

    12.8

    13.5

    22.3

    28

    112

    144

    16

    5/8-2S

    15.8

    16.6

    25.5

    28

    112

    160

    19

    3/4-2S

    18.8

    19.8

    29.7

    25

    100

    192
