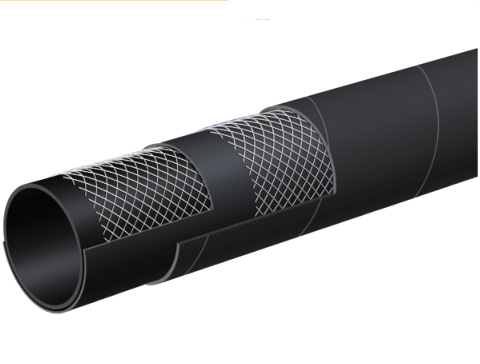

LT783 SAE 100R5 HYDRAULIC RUBBER HOSE LT783 SAE 100R5 HYDRAULIC RUBBER HOSE
  • LT783
  • Applications：Suitable for conveying petroleum-based hydraulic oil, lubricating oil, gasoline, fuel oil, water and air, etc
  • Tube：Black oil-resistant synthetic rubber
  • Reinforcement：One layer of braided high strength steel wire
  • Cover：One layer of braided dipping fiber
  • Temperature Range：-40 °C to + 100 °C (-40 °F to + 212 °F)

  • SIZE
    (Dash)

    SIZE
    (in.)

    I.D.
    (mm)

    O.D.
    (mm)

    		 Max.W.P. Min.B.P.

    Min.B.R.

    Min

    Max

    Max

    (MPa)

    (MPa)

    (mm)

    3

    3/16

    4.8

    5.5

    13.7

    21

    84

    75

    4

    1/4

    6.4

    7.2

    15.3

    21

    84

    85

    5

    5/16

    7.9

    8.7

    17.6

    15.7

    62.8

    100

    6

    3/8

    10.3

    11.1

    20.0

    14

    56

    115

    8

    1/2

    12.7

    13.7

    24.0

    12.2

    48.8

    140

    10

    5/8

    15.9

    17.0

    28.0

    10.5

    42

    165

    12

    7/8

    22.2

    23.3

    32.2

    5.6

    22.4

    185

    16

    1 1/8

    28.6

    29.8

    38.9

    4.3

    17.2

    230

    20

    1 3/8

    34.9

    36.1

    45.2

    3.5

    14.0

    265

    32

    1 3/4

    46.0

    47.2

    57.6

    2.4

    9.6

    335

    40

    2 3/8

    60.3

    61.9

    74.2

    2.4

    9.6

    610

    48

    3

    76.2

    77.8

    91.7

    1.4

    5.6

    840
