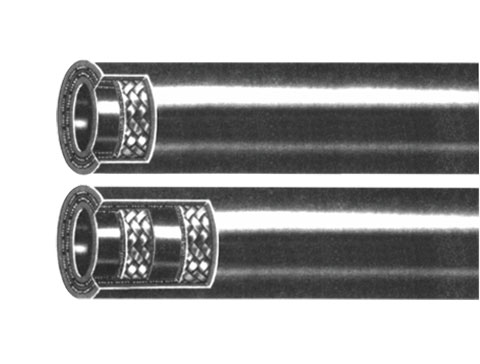

WIRE BRAID STEAM HOSE WIRE BRAID STEAM HOSE
  • LT786
  • Applications：Suitable for continuous delivery of saturated steam and hot water at temperatures below 150 °C or intermittent delivery at temperatures below 160 °C.(Overheated steam will reduce the service life of the product; the vacuum caused by the closed hose assembly ends will cause "popcorn phenomenon" or delamination of the inner glue)
  • Tube：Black heat-resistant synthetic rubber
  • Reinforcement：One or two layers of braided fiber or steel wire
  • Cover：Heat-resistant, weather-resistant, wear-resistant synthetic red rubber, steam pipe body equidistant puncture
  • Temperature Range：-40℃ to +150℃ (-13℉ to +302℉)

  • SIZE
    (Dash)

    SIZE
    (in.)

    		 I.D.
    (mm)

    O.D.

    Max.W.P.

    Min.B.P.

    Min

    Max

    (mm)

    (MPa)

    (MPa)

    -6

    3/8—1

    9.8

    10.8

    22

    0.4

    3

    -8

    1/2—1

    12.7

    13.7

    24

    0.4

    3

    -10

    5/8—1

    15.5

    16.5

    27

    0.4

    3

    -12

    3/4—1

    18.5

    20.0

    30

    0.4

    3

    -16

    1—1

    24.5

    26.0

    38

    0.4

    3

    -20

    1 1/4—1

    31.5

    33.0

    46

    0.4

    3

    -24

    1 1/2—1

    37.5

    39.0

    51

    0.4

    3
    -32

    2—1

    50.0

    52.0

    64

    0.4

    3

    -6

    3/8—2

    9.8

    10.8

    23

    0.4

    3

    -8

    1/2—2

    12.7

    13.7

    27

    0.4

    6

    -10

    5/8—2

    15.5

    16.5

    29

    0.4

    6

    -12

    3/4—2

    18.5

    20.0

    32

    0.4

    6

    -16

    1—2

    24.5

    26.0

    39

    0.4

    6

    -20

    1 1/4—2

    31.5

    33.0

    47

    0.4

    6

    -24

    1 1/2—2

    37.5

    38.0

    52

    0.4

    6

    -32

    2—2

    50.0

    52.0

    89

    0.4

    6
