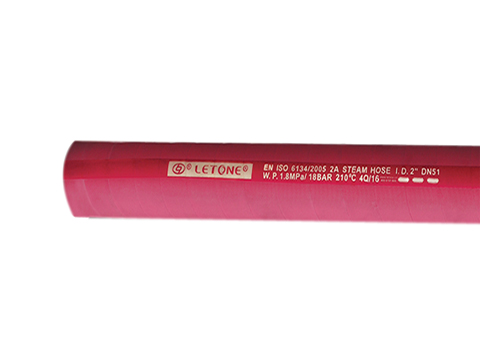

270 PSI EPDM Braided Steam Hose
LT1004-A/LT1004-BApplications：The transfer of saturated steam up to 270 PSI AND 430℉(+220℃). Use with superheated steam will shorten hose life. Proper draining of steam hose after each use will increase service life
Tube：Black extruded EPDM-hQat-resistant
Reinforcement：High tensile steel wire braids
Cover：Red or black EPDM rubber, heat resistant, surface texture, using pinhole technologyWorking Pressure：Constant Pressure-18 Bar (270 PSI)
Temperature Range：-40℃（-40°F）to +220℃（+430°F）
|
Series |
I.D.
(in.) |
I.D.
(mm) |
O.D.
(in.) |
O.D.
(mm) |
Max.W.P.
(psi)
|
Min.B.R.
|
W.
（kg/m） |
| LT1004A/B-050 |
1/2 |
13 |
0.91 |
23 |
270 |
5 |
0.42 |
| LT1004A/B-075 |
3/4 |
19 |
1.22 |
31 |
270 |
71/2 |
0.77 |
| LT1004A/B-100 |
1 |
25 |
1.50 |
38 |
270 |
10 |
0.89 |
