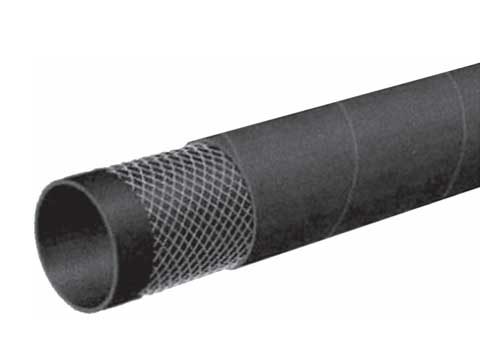

75 PSI Radiator Hose 75 PSI Radiator Hose
  • LT1003
  • Applications：Radiator hose
  • Tube：Black EPDM
  • Reinforcement：High tensile textile cords
  • Cover：Black EPDM-heat, abrasion and ozone resistant
  • Working Pressure：5 Bar (75 PSI)
  • Temperature Range：-40° F (-40° C) to 248° F(+120° C)
  • Series I.D.
    (in.)    		 I.D.
    (mm)    		 O.D.
    (in.)    		 O.D.
    (mm)    		 Max.W.P.
    (psi)     		L.
    (m)    		 W.
    （kg/m）
    LT1003-050X12.6 1/2 13 0.83 21 75 3.81 0.28
    LT1003-050X200 1/2 13 0.83 21 75 60.96 0.28
    LT1003-062X12.6 5/8 16 0.94 24 75 3.81 0.33
    LT1003-062X200 5/8 16 0.94 24 75 60.96 0.33
    LT1003-071X12.6 11/16 18 1.02 26 75 3.81 0.36
    LT1003-071X200 11/16 18 1.02 26 75 60.96 0.36
    LT1003-078X12.6 13/16 20 1.10 28 75 3.81 0.39
    LT1003-078X200 13/16 20 1.10 28 75 60.96 0.39
    LT1003-087X12.6 7/8 22 1.18 30 75 3.81 0.42
    LT1003-087X200 7/8 22 1.18 30 75 60.96 0.42
    LT1003-100X12.6 1 25 1.30 33 75 3.81 0.48
    LT1003-100X200 1 25 1.30 33 75 60.96 0.48
    LT1003-112X12.6 11/8 28 1.42 36 75 3.81 0.51
    LT1003-112X200 11/8 28 1.42 36 75 60.96 0.51
    LT1003-118X12.6 13/16 30 1.50 38 75 3.81 0.55
    LT1003-118X200 13/16 30 1.50 38 75 60.96 0.55
    LT1003-125X12.6 11/4 32 1.57 40 75 3.81 0.58
    LT1003-125X200 11/4 32 1.57 40 75 60.96 0.58
    LT1003-137X12.6 13/8 35 1.69 43 75 3.81 0.62
    LT1003-137X200 13/8 35 1.69 43 75 60.96 0.62
    LT1003-150X12.6 11/2 38 1.89 48 75 3.81 0.85
    LT1003-150X200 11/2 38 1.89 48 75 60.96 0.85
    LT1003-157X12.6 19/16 40 1.97 50 75 3.81 0.89
    LT1003-157X200 19/16 40 1.97 50 75 60.96 0.89
    LT1003-162X12.6 15/8 42 2.05 52 75 3.81 0.94
    LT1003-162X200 15/8 42 2.05 52 75 60.96 0.94
    LT1003-175X12.6 13/4 45 2.17 55 75 3.81 0.98
    LT1003-175X200 13/4 45 2.17 55 75 60.96 0.98
    LT1003-189X12.6 17/8 48 2.28 58 75 3.81 1.04
    LT1003-189X200 17/8 48 2.28 58 75 60.96 1.04
    LT1003-200X12.6 2 51 2.40 61 75 3.81 1.12
    LT1003-200X200 2 51 2.40 61 75 60.96 1.12
    LT1003-218X12.6 23/16 55 2.56 65 75 3.81 1.19
    LT1003-225X12.6 21/4 57 2.64 67 75 3.81 1.22
    LT1003-238X12.6 23/8 60 2.76 70 75 3.81 1.28
    LT1003-250X12.6 21/2 63 2.87 73 75 3.81 1.34
    LT1003-275X12.6 23/4 70 3.15 80 75 3.81 1.44
    LT1003-300X12.6 3 76 3.39 86 75 3.81 1.55
    LT1003-315X12.6 31/8 80 3.54 90 75 3.81 1.64
    LT1003-354X12.6 39/16 90 4.02 102 75 3.81 2.02
    LT1003-400X12.6 4 102 4.49 114 75 3.81 2.26
    LT1003-450X12.6 41/2 116 5.00 127 75 3.81 2.51
    LT1003-500X12.6 5 127 5.55 141 75 3.81 3.21
