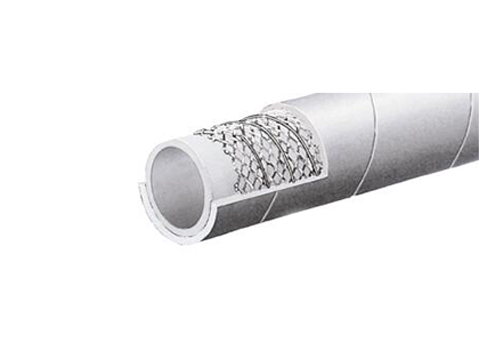

150PSI White Food S&D Hose(liquid,fatty,oily food and alcoholic beverage suction and discharg 150PSI White Food S&D Hose(liquid,fatty,oily food and alcoholic beverage suction and discharg
  • LT1101
  • Application：Liquid,fatty,oily food and alcoholic beverage (max 75 proof) suction and discharge
  • Cover：White NBR/PVC-abrasion ozone and oil resistant
  • Reinforcement：NSpiralled hightensile textile cords, and 4 highly flexiblesteelhelix wires
  • Tube：White NBR. Meets FDA and 3A requirements
  • Working Pressure：-10Bar(150PSI)
  • Temperature Range：-30℃（-22℉）~+80℃（+176℉）
  • Specifications
    Series
    I.D.
    （in.）
    I.D.
    （mm）
    O.D.
    （in.）
    O.D.
    （mm）
    Max.W.P.
    (psi)
    V.H.
    （in.）
    Min.B.R.
    W.
    （kg/m）
    LT1101-100
    1
    25
    1.46
    37
    150
    30
    3
    0.91
    LT1101-150
    11/2
    38
    1.97
    50
    150
    30
    41/2
    1.25
    LT1101-200
    2
    51
    2.48
    63
    150
    30
    6
    1.61
    LT1101-300
    3
    76
    3.46
    88
    150
    27
    9
    2.54
    LT1101-400
    4
    102
    4.57
    116
    150
    27
    12
    3.51
