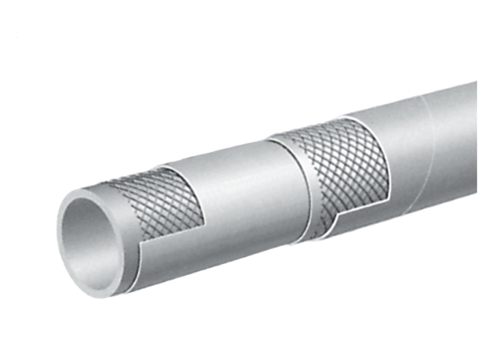

150PSI Food Discharge Hose 150PSI Food Discharge Hose
  • LT1105
  • Applications:Discharge of liquids, fats, greasy foods and alcoholic beverages (maximum of no more than 75 alcohol). The hose can be sterilized with 5% soda. Not recommended for dry abrasives
  • Cover: White NBR/PVC blend-abrasion, ozone and oil resistant
  • Reinforcement:High tensile textile cords
  • Inner Tube:White NBR, Meet FDA requirements
  • Temperature Range:-30℃(-22℉) to +80℃(+176℉)
  • Working Pressure:Constant Pressure-10 Bar(150PSI)
  • Specifications
    Series
    I.D.
    (in.)
    I.D.
    (mm)
    O.D.
    (in.)
    O.D.
    (mm)
    Max.W.P.
    (psi)
    W.
    (kg/m)
    LT1105-150
    11/2
    38
    1.89
    48
    150
    0.89
    LT1105-200
    2
    51
    2.48
    63
    150
    1.46
    LT1105-300
    3
    76
    3.46
    88
    150
    2.05
