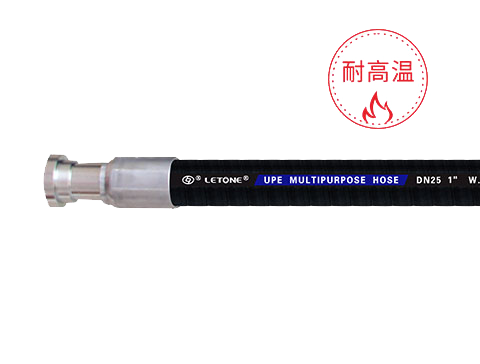

UPE HIGH PRESSURE MULTIPURPOSE HOSE

LT1202H

Application：Widely apply to industries like chemical, iron and steel smelting, construction, F&B, and medication etc. It is rarely reacting with any substance (oil, fats, corrosion chemicals etc.) because of its highly saturation materials. Its neutral taste and odor illustrates that it is safe to use in the F&B and medical industries.

Inner Tube: UPE and EPDM synthetic rubber

Reinforcement: two steel wire braids or four-ply of spiraled steel wire

Outer Layer: black /red/yellow/blue oxygen, UV ,
and
abrasion resistant NV or EPDM synthetic rubber(UPE layer is available)

Temperature Range: -30°C~82°C (-22°F~180°F)

Reference standard：EN12115

I.D		O.D		W.P	Min.B.P	W.T
in	mm	in	mm	psi	psi	kg/m
3/8*2	10	0.75	19	5075	20300	0.58
1/2*2	13	0.89	22.2	4060	19140	0.61
5/8*2	16	1.07	27.2	3625	15950	0.73
3/4*2	19	1.20	30.5	3190	14500	0.95
1*2	25	1.52	38.4	2465	12325	1.42
1-1/4*2	32	1.79	45.5	1885	9425	1.72
1-1/2*2	38	2.03	51.5	1305	5220	1.9
2*4	51	2.99	76	5000	12500	6.3
3*4	76	4.09	104	5000	12500	10.5
3-1/2*4	89	4.76	121	5000	12500	14
4*4	102	5.28	134	5000	12500	16
