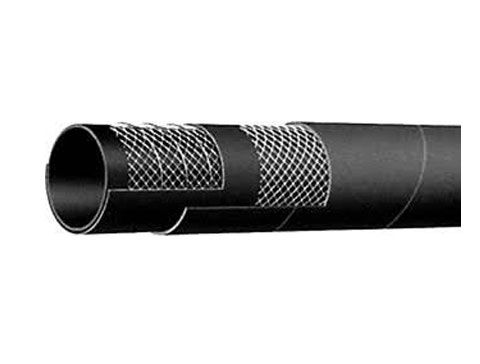

150PSI Black Biofuel Petroleum S&D Hose 150PSI Black Biofuel Petroleum S&D Hose
  • LT1214
  • Applications:For suction and discharge applications in truck and tank car transfer of gasoline, oil and Biofuels-up to E98 and B100* with up to 60% aromatic content at ambient temperature
  • Tube:Black conductive synthetic rubber
  • Reinforcement:High tensile textile cords and steel helix wires
  • Cover:Black specially-blended neoprene-added resistance against abrasion, ozone and hydrocarbons
  • Working Pressure:Constant Pressure-10Bar(150PSI)
  • Temperature Range:--30℃(-22°F)to +80℃(+176°F).
  • Specifications
    Series I.D.
    (in.)
    I.D.
    (mm)
    O.D.
    (in.)
    O.D.
    (mm)
    Max.W.P.
    (psi)
    Vacuum HG
    (in.)
    Min.B.R.
    (mm)
    W.
    (kg/m)
    LT1214-075 3/4 19 1.14 29 150 30 3 0.61
    LT1214-100 1 25 1.38 35 150 30 4 0.76
    LT1214-125 11/4 32 1.65 42 150 30 5 0.89
    LT1214-150 11/2 38 1.89 48 150 30 6 1.06
    LT1214-200 2 51 2.40 61 150 30 8 1.35
    LT1214-250 21/2 63 2.95 75 150 27 10 2.11
    LT1214-300 3 76 3.46 88 150 27 12 2.54
    LT1214-400 4 102 4.57 116 150 27 16 3.54
