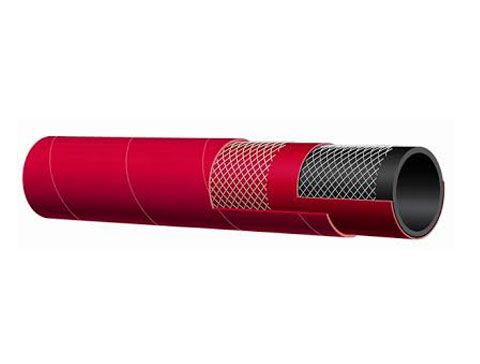

LT1211 150PSI Red Petroleum S&D Hose LT1211 150PSI Red Petroleum S&D Hose
  • LT1211
  • Applications:For suction and discharge applications in truck and tank car transfer of gasoline, oil and other petroleum-based products with up to 50% aromatic content
  • Tube:Black conducive NBR
  • Reinforcement:High tensile textile cords and high flexible steel helix wire
  • Cover:Red CR-abrasion, ozone and hydrocarbon resistant
  • Working Pressure:Constant Pressure-10Bar(150PSI)
  • Temperature Range:--30℃(-22°F)to +80℃(+176°F)
  • Specifications
    Series I.D.
    (in.)
    I.D.
    (mm)
    O.D.
    (in.)
    O.D.
    (mm)
    Max.W.P.
    (psi)
    Vacuum HG
    (in.)
    Min.B.R.
    (mm)
    W.
    (kg/m)
    LT1211-150 11/2 38 1.89 48 150 30 6 1.09
    LT1211-200 2 51 2.40 61 150 30 8 1.40
    LT1211-300 3 76 3.46 88 150 27 12 2.59
    LT1211-400 4 102 4.57 116 150 27 16 3.59
